Brand Name : | KAAP |
Model Number : | KP2019122302 |
Certification : | ISO9001,SGS |
Price : | Negotiable |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 1000 Square Meters/Week |
Delivery Time : | 10-15 days after deposit |

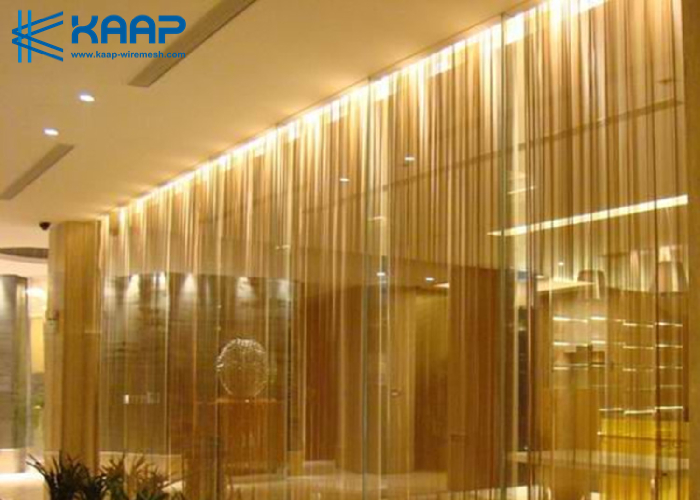

Architectural decorative cable mesh is made with braided cable ropes across the metal rods. This structure allows the material to stretch while maintaining the same plane stiffness in the other. The material has unlimited durability, can bear the stress and deformation without damage.
Application:
commercial and residential areas, window trim, door curtains, exhibitions wall mesh, elevator room, parking garage etc.
Features:
1. Eco-friendly, practicality, extensive use.
2. Easy installation, simple maintenance, long service life.
3. Firm and durable structure.
4. A variety of unique patterns, and have benefits of remarkably versatile.
Specification:
term | Cable Diameter (mm) | Cable NO. | Cable Pitch (mm) | Rod Diameter (mm) | Rod Pitch (mm) | Weight (kg/m2) |
KC-311 | 3 | 3 | 40 | 3 | 11 | 9.5 |
KC-415 | 2.75 | 2 | 40 | 4 | 15 | 9.41 |
KC-36 | 2 | 4 | 50 | 3 | 6 | 11.56 |
KC-310 | 2 | 3 | 80 | 3 | 10 | 6.6 |
KC-153 | 1.75 | 4 | 26.4 | 1.5 | 3 | 5.3 |
KC-47 | 1.05 | 2 | 36 | 4 | 7 | 14.9 |
KC-24 | 1 | 4 | 36 | 2 | 4 | 7 |
KC-082 | 0.6 | 2 | 5.5 | 0.8 | 2 | 3.1 |
KC-0516 | 0.45 | 3 | 3.5 | 0.5 | 1.6 | 2.1 |
![]() |
