    KAAPGN Welded Wire Mesh Gabion 4mm Hot Dipped Galvanized Architectal Landscape Design

    Ask Lasest Price
    Brand Name : KAAPGN
    Model Number : KP0602
    Certification : ISO9001
    Price : USD 7.99-28.99 /Set
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 5000 sets/per month
    Delivery Time : 15-20days
    MOQ : 200 Set
    • Product Details
    • Company Profile

    KAAPGN Welded Wire Mesh Gabion 4mm Hot Dipped Galvanized Architectal Landscape Design

    KAAPGN Welded Wire Mesh Gabion 4mm Hot Dipped Galvanized Architectal Landscape Design


    A gabion is a cage, cylinder or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering,

    road building, military applications and landscaping.Welded mesh gabion is made of high tensile strength steel wire.

    Then welded the wires into a panel.afterward we assemble them with different types of connections ,such as hog ring,spring joints,U clip and hook connection. The accessories can reinforce the cage not easy to deform.


    Because of this , compared with hexagonal meshgabion box, welded gabion box is able to keep its shape and

    fit well with the target. In recent years, welded gabion box has become more and more popular in the decoration of

    garden and landscape, it can be used as a flowerpot, fireplace,decorative wall and various landscape architecture.

    The life expectancy of gabions depends on the lifespan of the wire, not on the contents of the basket. The structure will fail when the wire fails. Galvanized steel wire is most common, but PVC-coated, Galfan wire and stainless steel wire are also used. PVC-coated galvanized gabions have been estimated to survive for 60 years.Some gabion manufacturers guarantee a structural consistency of 50 years.


    Specifications:

    Material

    galvanized wire, Galfan wire ,PVC coated wire,Stainless steel wire .

    Wire diameter

    3mm, 4mm, 5mm, 6mm.

    Mesh opening

    50 × 50mm, 75 × 75mm,76.2mmx76.2mm 50 × 100mm, 100 × 100mm

    Cage size

    2 × 1 × 1m, 2 × 1 × 0.5m, 2 × 1 × 0.3m, 1 × 1 × 1m etc

    Pattern

    welded

    Packaging

    in pallets or as your request

    Tensile strength

    380-550 N/mm2.


    Features

    1.The surface is smooth and tidy, the mesh is uniform, the welding point is firm, and it has strong firmness, corrosion resistance, permeability and integrity.


    2. inexpensive and easy to install, making them ideal for courtyard decoration and slope protection.


    3. strong ability to resist natural damage and resist the effects of bad weather.


    4. Very good tensile strength.


    5.The on-site installation of the welded gabion is simple, fast and convenient, and has a beautiful structure, saving time and labor, and high working efficiency.


    6.The time of installation is 40% less than that of hexagonal gabion wire mesh.

    Compared with the hexagonal gabion mesh, the welded gabion mesh can better maintain the "cage shape"


    7.When the filler is full, the welded gabion panel is not convex or concave, keep the plane, and will not bulge like the hexagonal gabion, so it can be better connected to other gabion nets or to form a whole with the wall.


    Production Line

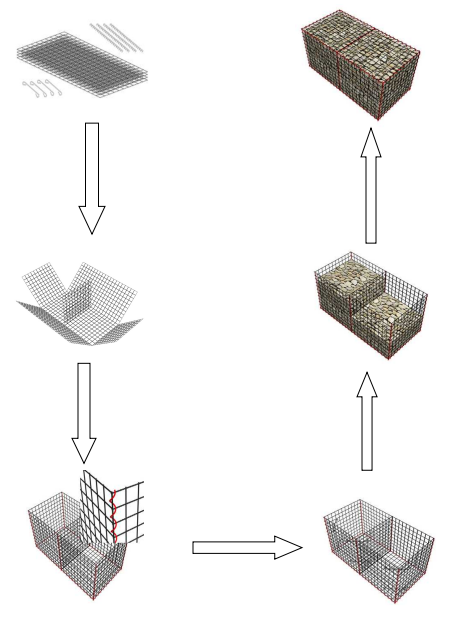

    Installations Process

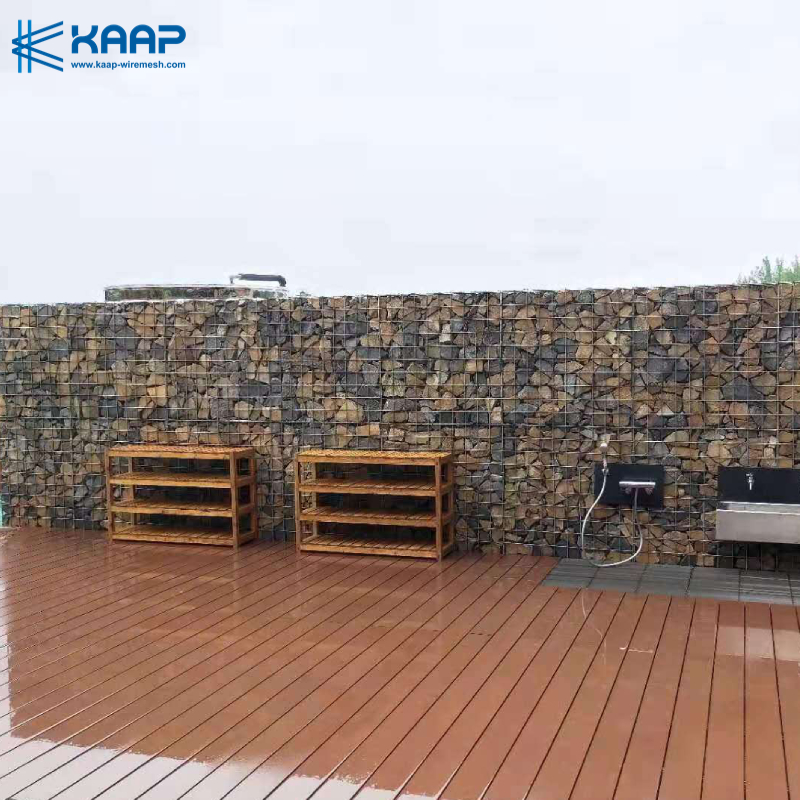

    Applications:


    Garden Seating



    Retaining Wall



    Landscaping


    Compamy Profile

    We Try Specializing In Manufacturing And Exporting Of Gabion Since 2006 . It Is Located In Largest Screen Production Base, Anping,The Famous Wire Mesh Town' In China, Since Its Inception.We Have Focused On Gabion , Welded Wire Mesh , Steel Bar Grating , Fence Etc. We Have Formed A Comprehensive Operation Model Of Integrating Design , Production, Sales, Installation And After-Sales Service. In Addition, Razor Barbed Wire , Posts , Chain Link Mesh.Decorative Mesh And Other Metal Products Are Also Our Business Scope Which Is Mainly Used In Military Affairs, Prison,Government, Bank, Ship And Also In Living Wall, Personal House , Villatic Wall, Window, Autobahn , Railway And Border Of The Fence. Hope To Cooperate With Customers Around The World,Mutual Benefit, Create A Better Future.


    FAQ

    Q: Are you a manufacture or trading company?

    A: We are factory, we have been in producing this product since 2006.


    Q:Can I get a sample?

    A: we will gladly provide free samples for your testing and inspection. You just need to collect samples yourself or dispatch samples by paying us courier charges.


    Q: Can we have your products with our own logo on package?

    A: Yes, just send us your logo or printing design and the setup cost would be quoted per artwork.


    Q: How is the gabion sold - in flat sheets or on rolls?

    A:All gabion and mattress shall be supplied in the collapsed form, either folded and bundled or rolled, for shipping.


    Q:Can I get a special gabion that I don't see listed on your website?

    A:Yes, many items are available as a special order. Contact us with your special requirements.


    Q:What is the difference between woven and welded gabion? A:Woven gabion is made from hexagonal double twisted steel wire mesh, while welded gabion is made from welded wire fabric.


    Q:What's your payment term?

    A:T/T is the prior, we also accept L/C at sight, D/P at sight, Paypal etc, all depends on how much you order.
