Defensive Container Barrier/Welded Hot Dipped Galvanized
Explosion-proof Wall
it is the unit from which built barriers and fences of any length
and height. People have traditionally used for this purpose
sandbags. But HESCO containers made of galvanized welded wire mesh,
hidden in a solid polypropylene waterproof fabric.
The containers can be filled with soil, sand, cement or stone. Of
these sturdy blocks, just placing them on each other, you can build
any defensive wall as soon as possible. By the way, the development
of container HESCO was recognized as the most significant event in
the theory of fortification after the Second World War.
Applications
1. Perimeter security and defensing walls
2. Equipment revetments
3. Explosive and contraband search areas
4. Personnel and material bunkers
5. Observation points
6. Defensive firing positions
Features

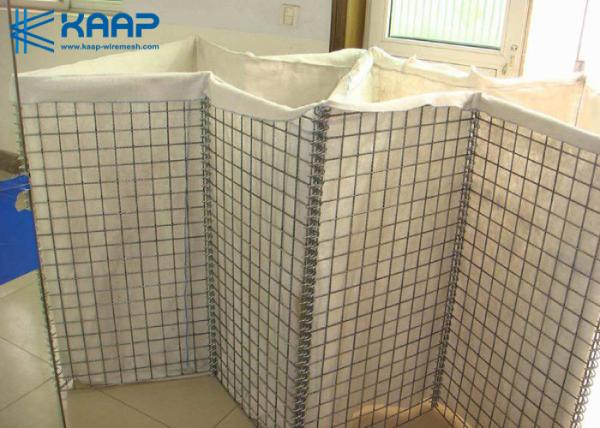

1. A pre-fabricated gabion of galvanized welded mesh steel fitted
with a UV-protecting.
2. Polypropylene geo-textile liner.
3. Filling material is an easy- obtained mix of sand and small
stones.
4. It can be used together to any length, and can be stacked for
additional height.
Specification:
Wire diameter: 4mm, 5mm
Mesh size: 50mmx50mm, 76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be
customized according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
Finish: hot dipped galvanized, zinc-aluminum alloy coated after
welded
| Product | Height | Width | Length |
| MIL1 5442 R | 54''(1.37M) | 42''(1.06M) | 32'9''(10M) |
| MIL2 2424 R | 24'' (0.61M) | 24''(0.61M) | 4'(1.22M) |
| MIL3 3939 R | 39''(1.00M) | 39''(1.00M | 32'.9''(10M) |
| MIL4 3960 R | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) |
| MIL5 2424 R | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) |
| MIL6 6624 R | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) |
| MIL7 8784 R | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) |
| MIL8 5448 R | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) |
| MIL9 3930 R | 39''(1.00M) | 30''(0.76M) | 30''(9.14M) |
| MIL10 8760 R | 87''(2.21M) | 60''(1.52M) | 100'(32.50M) |
| MIL11 4812 R | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) |
| MIL12 8442 R | 84''(2.13M) | 42''(1.06M) | 108'(33M) |
