Brand Name : | KAAP |
Model Number : | KP2019122302 |
Certification : | ISO9001,SGS |
Price : | Negotiable |
Payment Terms : | T/T, L/C, Western Union |
Supply Ability : | 20000 Square Meters/Week |
Delivery Time : | 10-15 days after deposit |

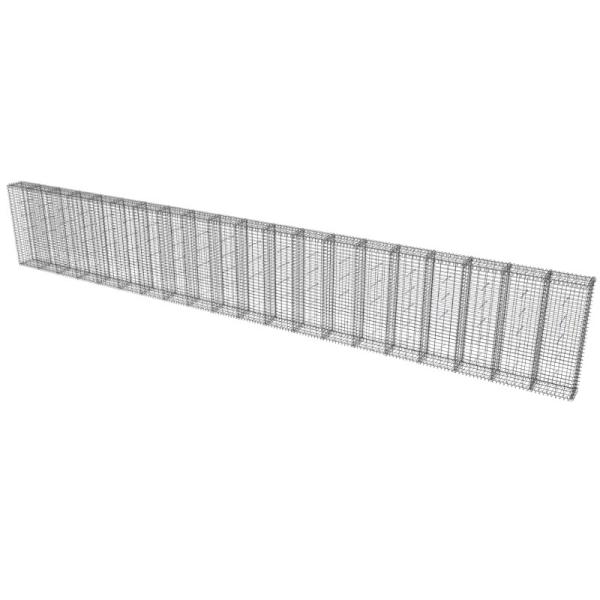

Gbaion Basket
KAAPGN Welded Gabion are made by one of the nation’s leading manufacturers of welded wire mesh.
1. Finishing: heavy duty galvanized or galfan galvanized
2. Surface treatment: electro galvanized, hot-dipped galvanized,
pvc coated, stainless steel
3. Wire diameter: 2.7--5mm
4. Mesh size/opening: 37.5x75mm, 50x50mm, 75x75mm, 100x50mm,
100x100mm
5. Zinc coating: 40-290g/mm2
6. Application: Flood dam, dam and diversion, Prevent soil erosion,
bridge protection, retaining wall, road protection
7. Feature:easy to install, beautiful structure, low cost, it is
the best choice for garden decoration greening slope.
Deatils show
Applications
In more applications, the welded garden gabion structure can be
made into different sizes and shapes for decoration
applications.They can be made into gabion pot, staircase, table and
bench, postbox. It can also be used to form particular
landscapes, such as waterfall, fireplace and decorative wall.
Specification
Wire diameter | 3mm,4mm,5mm,6mm |
Opening mesh | 50x50mm,50x100mm,100x100mm,7.=6.2x76.2mm, |
Gabion size | 1x1x1m,2x1x1m,3x1x1m,1x1x0.5m |
Surface treatment | Hot dipped galvanzied, Heavy-duty galvanized ,Powder coated,Galfan |
Mimnium order | 99 sets |
Features
1.Simple
Unskilled labour can be used for quick assembly.
2.Maintenance
Gabion structures are easily maintained using additional mesh or
grouting.
3.Extendable
Extensions are simple. Additional units are simply attached to the
existing ones
Processing
Installation
1. let two adjacent stone cage meshs be perpendicular to the ground.on
both sides prepare the spiral allgnment as showed i nthe schematic
a 90 angle at the mesh connection,adjust the angle to make the
spiral itself inertia just drop it.
2.Move the connected mesh to the bottom,align the interface.wear into
the corresponding spiral wire;can also be installed after the
suppounding mesh aligh the mesh at bottom for assembly and install
the spiral wire flip the angle and borrow the gaavity of the screw.
3.Continue to install the side mesh, because the weight of the mesh
increases at this time,it is not conducive to one person to move,so
flip the gage 90 for manual threading
4.Install the spacer according to the length of the perimeter of the
spacer,prepare the corresonding spiral wire.the bottom is manually
penetrated,can be turned 90,and the vertical part is directly
inserted into the spiral wire.
5.The last side is installed,the gage is assembled into the hook and
installed ,and the correspongding points are located for hooking
6.Finally various stones,or other decorative materials,and used ,in
order to ensure the cage is flat and beautiful,the installantion of
stone requires reinforcement of the parallel bars outside the cage.
Company profile
Our factory established in 2006 year, and we have 14 years'
experience in research and development, we mainly do welded gabion,
weaving gabion box, welded mesh panel, steel bar grating, razor
barbed wire, bird spike,chain link mesh, hexagonal wire mesh,
ground staple, T/Y post, vineyard post, and other metal products,
etc....and we enjoys high reputation at home and abroad, and we
have professional team, we have excellent workmanship and price
favorable to cooperate.
Certificates
Exhibitions
FAQ
Q: Are you a manufacture or trading company?
A: We are factory, we have been in producing this product since
2006.
Q: Why choose us?
A: We have professional production line and team, Our goal is to
deliver excellence from start to finish of every project.
Q: Can you offer free sample?
A: Yes, as first cooperation usually the customer pay freight, and
we will return back this found if you make an order.
Q: Can we have your products with our own logo on package?
A: Yes, just send us your logo or printing design and the setup
cost would be quoted per artwork.
![]() |
