Gabion Bastion is made of Gabion box and stone.
Gabion Basket is rectangular basket fabricated from a heavily
galvanized hexagonal mesh. Gabions Basket depends mainly on the
interlocking of individual stone and rock within the wire mesh for
internal stability, and their mass or weight to resist hydraulic
and earth forces.
Then make the shape as cage to be filled with stone.
The coating mass is asked to more than 245g/m2 for zinc or zinc
alloy coated wire.
Box size such as 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m
x 0.5m, 4m x 1m x 0.5m,
which can be produce as per customer’s requirement.
Gabion application: conrol and guide of water or flood,
strengthening structure of soil, protection engineering of seaside
area
Specifications
| Mesh size | Wire diameter | Length x width x height (M) |
| 60x80mm | Edge wire diameter: 3.4mm / 4.4mm
Mesh wire diameter: 2.7mm / 3.7mm
Lacing wire: 2.2mm / 3.2mm | 1*1*1m
1*1*0.5m
2*1*1m
2*1*0.5m |
| 80x100mm |
| 100x120mm |
Connection

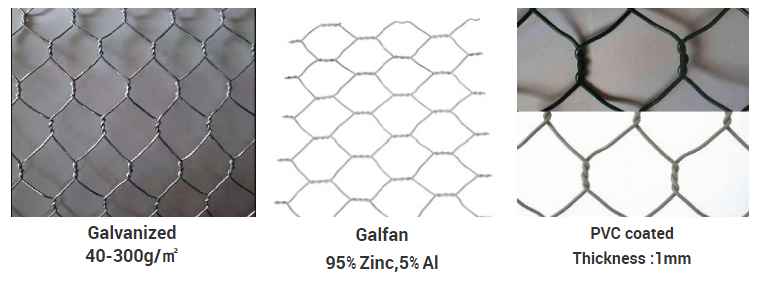

Surface treatment
Installation

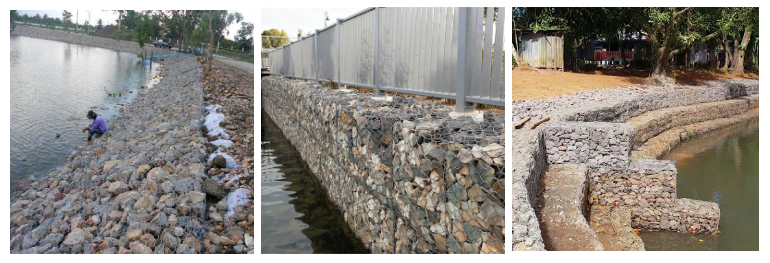

Applications
1.Port project.2.Roadway protection.
3.Bridge protection.
4.Protection engineering of seaside area.
Company profile
Our factory established in 2006 year, and we have 14 years'
experience in research and development, we mainly do welded gabion,
weaving gabion box, welded mesh panel, steel bar grating, razor
barbed wire, bird spike,chain link mesh, hexagonal wire mesh,
ground staple, T/Y post, vineyard post, and other metal products,
etc....and we enjoys high reputation at home and abroad, and we
have professional team, we have excellent workmanship and price
favorable to cooperate.
