Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military

Anping Kaipu Wire Mesh Products Co.,Ltd
Contact Now
    Buy cheap Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military from wholesalers

    Buy cheap Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military from wholesalers
    • Buy cheap Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military from wholesalers

    Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military

    Ask Lasest Price
    Brand Name : KAAPGN
    Model Number : 2022-6
    Certification : IOS 9001
    Price : 15-45 USD /SET
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100000 set/ month
    Delivery Time : 15-21 days
    • Product Details
    • Company Profile

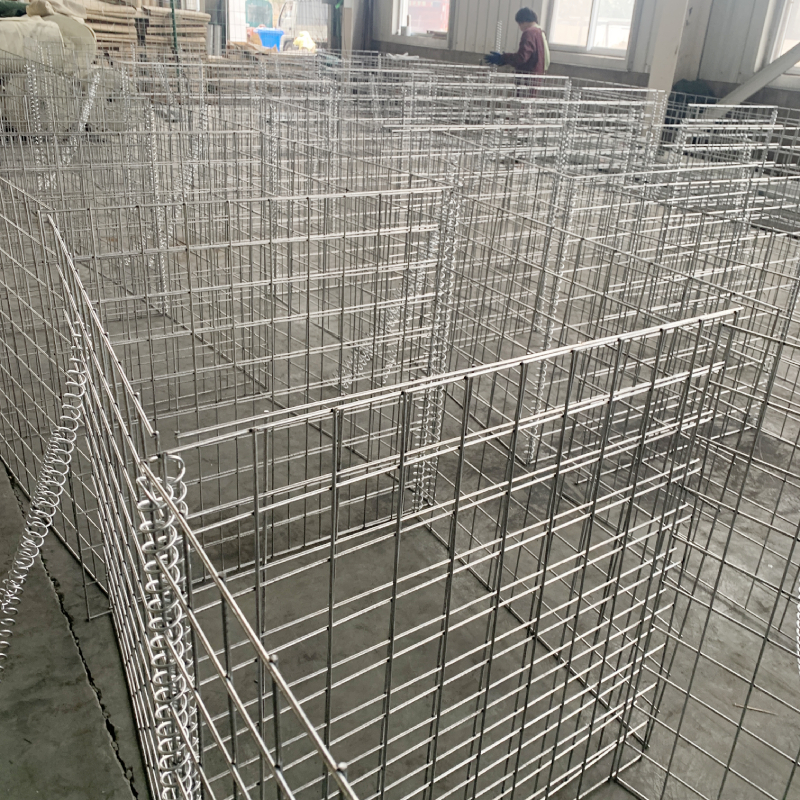

    Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military

    Welded gabion flood barrier​:

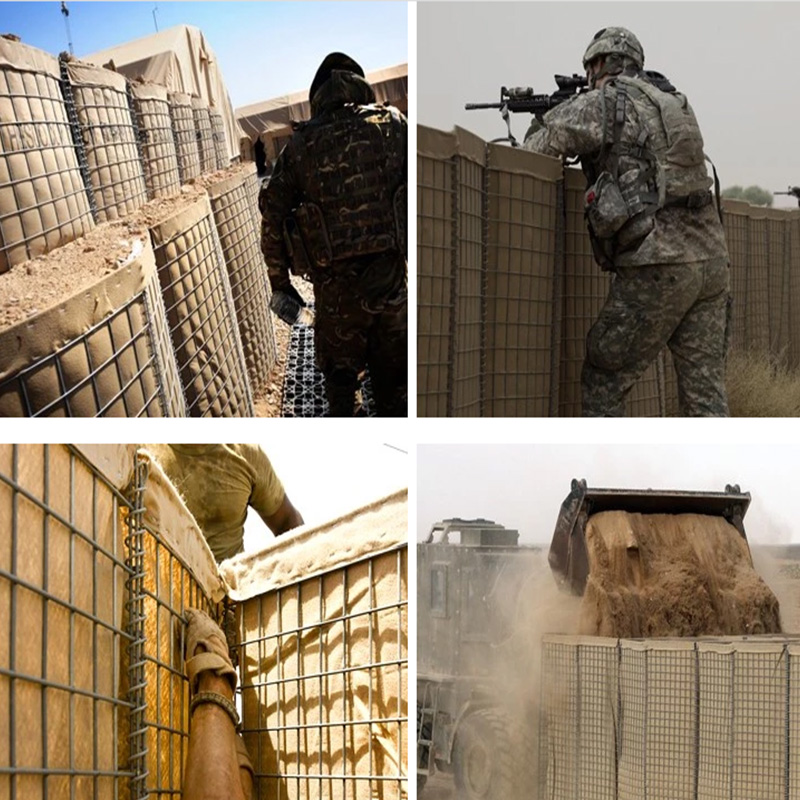

    It is also named as bastion, defense wall,Sand Cage, Welded Gabion box, etc.which is made of the steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the military to protect safety. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.


    Specifications


    Type
    Length
    Width
    Height
    No. of Cells / Unit
    Wire dia.
    Mesh Opening
    Packing
    20'
    40'
    KAAPGN-1
    (10m)
    3'6"(1.06m)
    4'6"(1.37m)
    5+4 Cells
    5mm
    76.2x76.2mm
    56 Units
    112 Units
    KAAPGN-2
    4'(1.22m)
    2'(0.61m)
    2'(0.61m)
    2 Cells
    5mm
    76.2x76.2mm
    720 Units
    1440 Units
    KAAPGN-3
    32'9"(10m)
    3'3"(1m)
    3'3"(1m)
    5+5 Cells
    5mm
    76.2x76.2mm
    80 Units
    160 Units
    KAAPGN-4
    32'9"(10m)
    5'(1.52m)
    3'3"(1m)
    5+5 Cells
    5mm
    76.2x76.2mm
    32 Units
    64
    Units
    KAAPGN-5
    10'(3.05m)
    2'(0.61m)
    2'(0.61m)
    5 Cells
    5mm
    76.2x76.2mm
    300 Units
    600 Units
    KAAPGN-6
    10'(3.05m)
    2'(0.61m)
    5'6"(1.68m)
    5 Cells
    5mm
    76.2x76.2mm
    108 Units
    216 Units
    KAAPGN-7
    91'(27.74m)
    7'(2.13m)
    7'3"(2.21m)
    5+4+4 Cells
    5mm
    76.2x76.2mm
    6 Units
    15 Units
    KAAPGN-8
    32'9"(10m)
    4'(1.22m)
    4'6"(1.37m)
    5+4 Cells
    5mm
    76.2x76.2mm
    32 Units
    72 Units
    KAAPGN-9
    30'(9.14m)
    2'6"(0.76m)
    3'3"(1m)
    6+6 Cells
    5mm
    76.2x76.2mm
    70 Units
    140 Units
    KAAPGN-10
    100'(30.5m)
    5'(1.52m)
    7'3"(2.21m)
    5+5+5+5 Cells
    5mm
    76.2x76.2mm
    6 Units
    14 Units
    KAAPGN-11
    4'(1.22m)
    12'(0.3m)
    4'(1.22m)
    2 Cells
    5mm
    76.2x76.2mm
    480 Units
    960 Units
    KAAPGN-12
    108'(33m)
    3'6"(1.06m)
    7'(2.13m)
    5+5+5+6+6+6 Cells
    5mm
    76.2x76.2mm
    6 Units
    15 Units

    Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military


    Advantage

    1.Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for

    additional height.

    2. The spiral hinged corners allows flat packing for ease of transportation

    3. The welded mesh frame is of highly durable construction

    4. The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that

    gives the system its strength.

    5. The non-woven geotextile liner allowing a wide range of fill material

    Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military

    Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military

    Packing

    Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military

    Square Hole 3mm Welded Gabion Mesh Galvanized Flood Control Explosion Proof Military
