High Quality Army Wall Welded Gabion Defense Bastion Barrier
Wire diameter:4mm/5mm /6mm
Spiral wire :4mm/5mm
Material: hot dipped galvanized wire,galfan galvanized wire
Mesh opening :3 inch * 3 inch
Geotechnical cloth
Size:300g/400g/ square meter
Color: Light tan/ Dark green
Technology machine stitched
Product Name: Gabion Defensive Barrier,Hesco Barrier, Military
Bastion,Welded Gabion Box,Stone Cage,Sand Wall, Flood Barrier.etc.
r.
Product Specification
Type | Length | Width | Height | No. of Cells / Unit | Wire dia. | Mesh Opening | Packing |
| 20' | 40' |
| KAAPGN-1 | (10m) | 3'6"(1.06m) | 4'6"(1.37m) | 5+4 Cells | 5mm | 76.2x76.2mm | 56 Units | 112 Units |
|
|
| KAAPGN-2 | 4'(1.22m) | 2'(0.61m) | 2'(0.61m) | 2 Cells | 5mm | 76.2x76.2mm | 720 Units | 1440 Units |
|
|
| KAAPGN-3 | 32'9"(10m) | 3'3"(1m) | 3'3"(1m) | 5+5 Cells | 5mm | 76.2x76.2mm | 80 Units | 160 Units |
|
| KAAPGN-4 | 32'9"(10m) | 5'(1.52m) | 3'3"(1m) | 5+5 Cells | 5mm | 76.2x76.2mm | 32 Units | 64 Units |
|
| KAAPGN-5 | 10'(3.05m) | 2'(0.61m) | 2'(0.61m) | 5 Cells | 5mm | 76.2x76.2mm | 300 Units | 600 Units |
|
| KAAPGN-6 | 10'(3.05m) | 2'(0.61m) | 5'6"(1.68m) | 5 Cells | 5mm | 76.2x76.2mm | 108 Units | 216 Units |
|
| KAAPGN-7 | 91'(27.74m) | 7'(2.13m) | 7'3"(2.21m) | 5+4+4 Cells | 5mm | 76.2x76.2mm | 6 Units | 15 Units |
|
|
| KAAPGN-8 | 32'9"(10m) | 4'(1.22m) | 4'6"(1.37m) | 5+4 Cells | 5mm | 76.2x76.2mm | 32 Units | 72 Units |
|
| KAAPGN-9 | 30'(9.14m) | 2'6"(0.76m) | 3'3"(1m) | 6+6 Cells | 5mm | 76.2x76.2mm | 70 Units | 140 Units |
|
| KAAPGN-10 | 100'(30.5m) | 5'(1.52m) | 7'3"(2.21m) | 5+5+5+5 Cells | 5mm | 76.2x76.2mm | 6 Units | 14 Units |
|
|
| KAAPGN-11 | 4'(1.22m) | 12'(0.3m) | 4'(1.22m) | 2 Cells | 5mm | 76.2x76.2mm | 480 Units | 960 Units
|
|
| KAAPGN-12 | 108'(33m) | 3'6"(1.06m) | 7'(2.13m) | 5+5+5+6+6+6 Cells | 5mm | 76.2x76.2mm | 6 Units | 15 Units
|

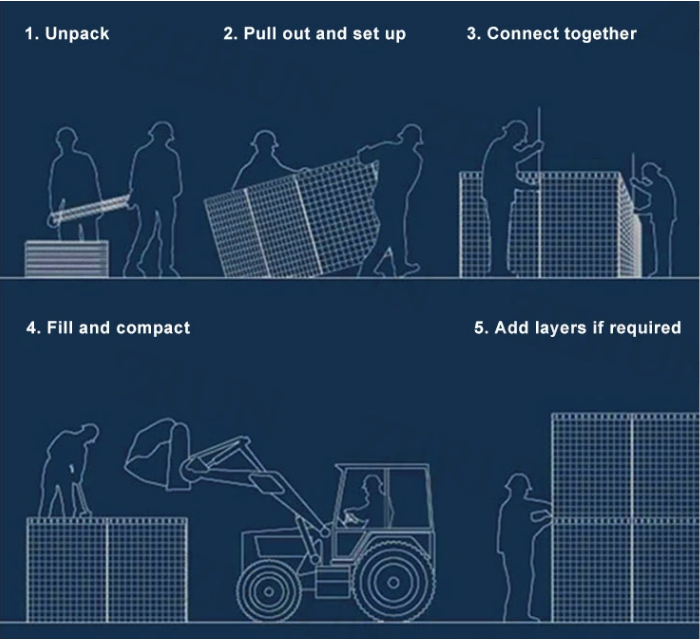

Installation

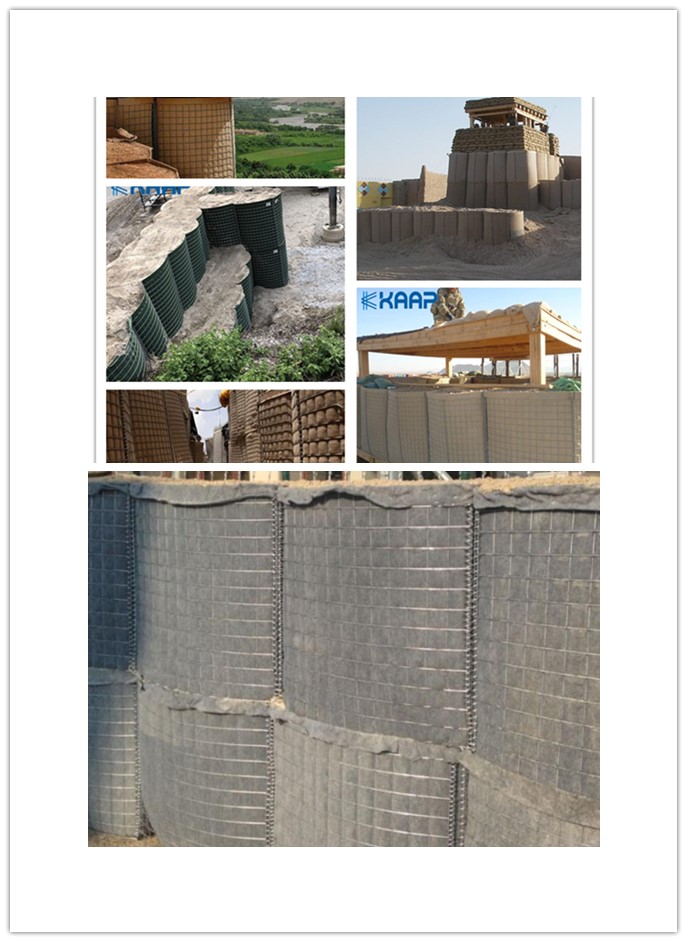

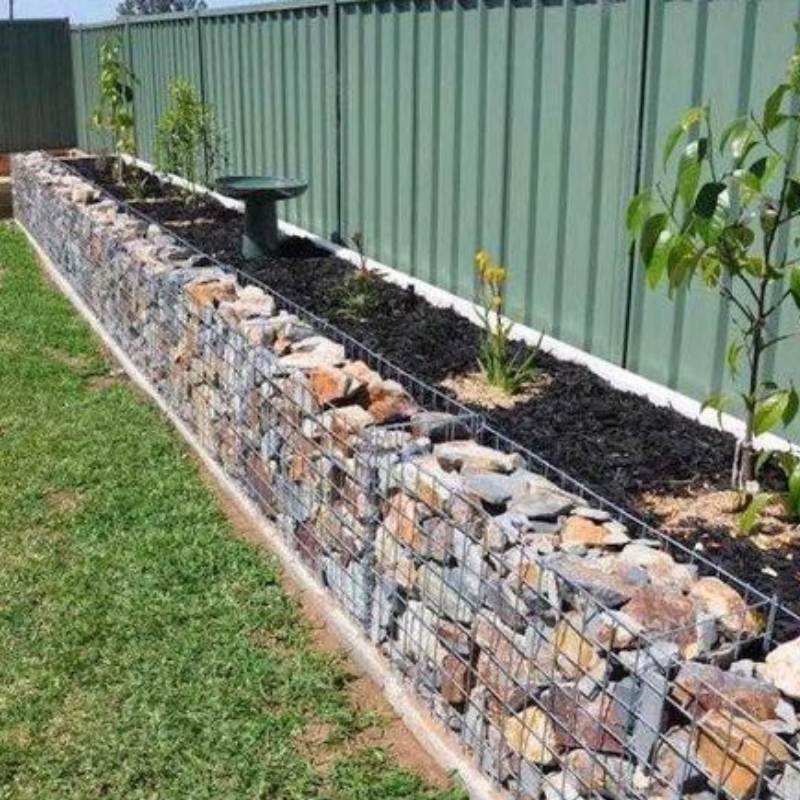

Product Applications:
Packing
Company Profile
Anping Kaipu Wire Mesh Products Co., Ltd. is a professional gabion
mesh supplier in China. We try specializing in manufacturing and
exporting of woven gabion,welded gabion since 2006.
We have focused on welded gabion and gabion defensive barrier and
formed a comprehensive operation model of integrating
design.production,sales,installation and after-sales service. In
addition,steel bar grating, welded fence and other garden supplies
are also our business scope .
Hope to cooperate with customers around the world,mutual benefit
,create a better future.
Certification
FAQ:
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:Zhaobazhuang Industrial Park, Hengshui, Hebei, China
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass
production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years
warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide
service.
