Hesco Bastion Barrier System Welded Gabion Blast Wall for Military
and Storm and Flood Barrier
It made of Galvanized welded mesh and lined with non-woven
geotextile. Units can be extended and joined using the provided
joining pins. It is easy installed with using minimal manpower and
commonly available equipment. After extended, it is filled into
sand,stone,then Welded Gabion barrier like a defence wall or
bunker,it is widely used for military fortification and flood
control.Accessories Supplied With Carrier Units.
Product Specification
| Type | Length(Unit) | Width(Unit) | Height(Unit) | No. of Cells / Unit |
|
| KAAPGN-1 | 32'9"(10m) | 3'6"(1.06m) | 4'6"(1.37m) | 5+4 Cells |
|
|
| KAAPGN-2 | 4'(1.22m) | 2'(0.61m) | 2'(0.61m) | 2 Cells |
|
|
| KAAPGN-3 | 32'9"(10m) | 3'3"(1m) | 3'3"(1m) | 5+5 Cells |
|
| KAAPGN-4 | 32'9"(10m) | 5'(1.52m) | 3'3"(1m) | 5+5 Cells |
|
| KAAPGN-5 | 10'(3.05m) | 2'(0.61m) | 2'(0.61m) | 5 Cells |
|
| KAAPGN-6 | 10'(3.05m) | 2'(0.61m) | 5'6"(1.68m) | 5 Cells |
|
| KAAPGN-7 | 91'(27.74m) | 7'(2.13m) | 7'3"(2.21m) | 5+4+4 Cells |
|
|
| KAAPGN-8 | 32'9"(10m) | 4'(1.22m) | 4'6"(1.37m) | 5+4 Cells |
|
| KAAPGN-9 | 30'(9.14m) | 2'6"(0.76m) | 3'3"(1m) | 6+6 Cells |
|
| KAAPGN-10 | 100'(30.5m) | 5'(1.52m) | 7'3"(2.21m) | 5+5+5+5 Cells |
|
|
| KAAPGN-11 | 4'(1.22m) | 12'(0.3m) | 4'(1.22m) | 2 Cells |
|
| KAAPGN-12 | 108'(33m) | 3'6"(1.06m) | 7'(2.13m) | 5+5+5+6+6+6 Cells |
|

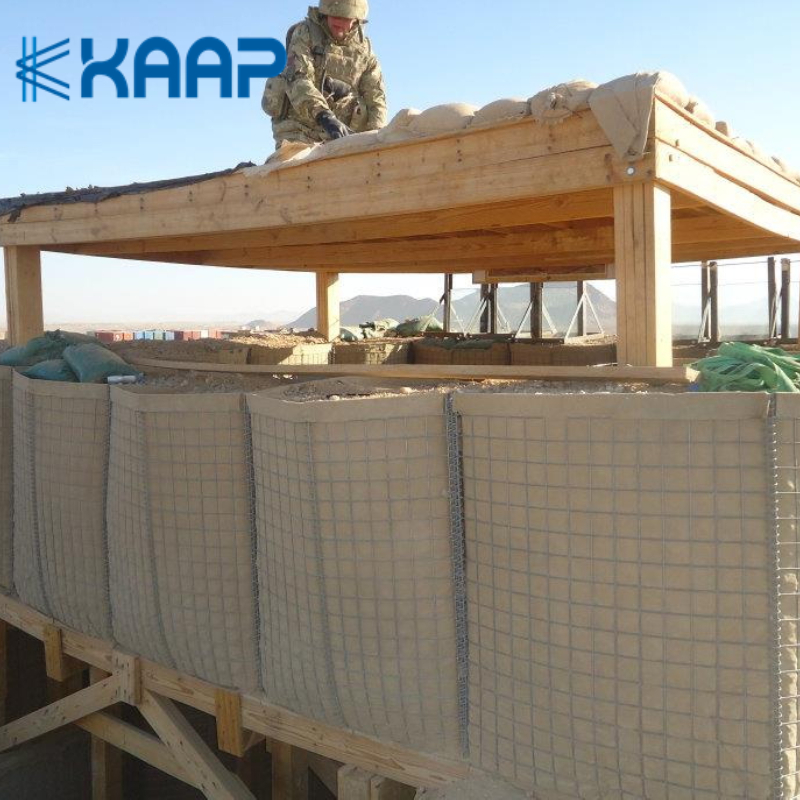

Product Applications:
Installation
Packing
Company Profile
Anping Kaipu Wire Mesh Products Co., Ltd. is a professional gabion
mesh supplier in China. We try specializing in manufacturing and
exporting of woven gabion,welded gabion since 2006.
We have focused on welded gabion and gabion defensive barrier and
formed a comprehensive operation model of integrating
design.production,sales,installation and after-sales service. In
addition,steel bar grating, welded fence and other garden supplies
are also our business scope .
Hope to cooperate with customers around the world,mutual benefit
,create a better future.
Certification
FAQ:
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:Zhaobazhuang Industrial Park, Hengshui, Hebei, China
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass
production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years
warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide
service.
