Anti rust Galvanized Welded Gabion Box Military Defensive Barriers
Product feature:
1.Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for
additional height.

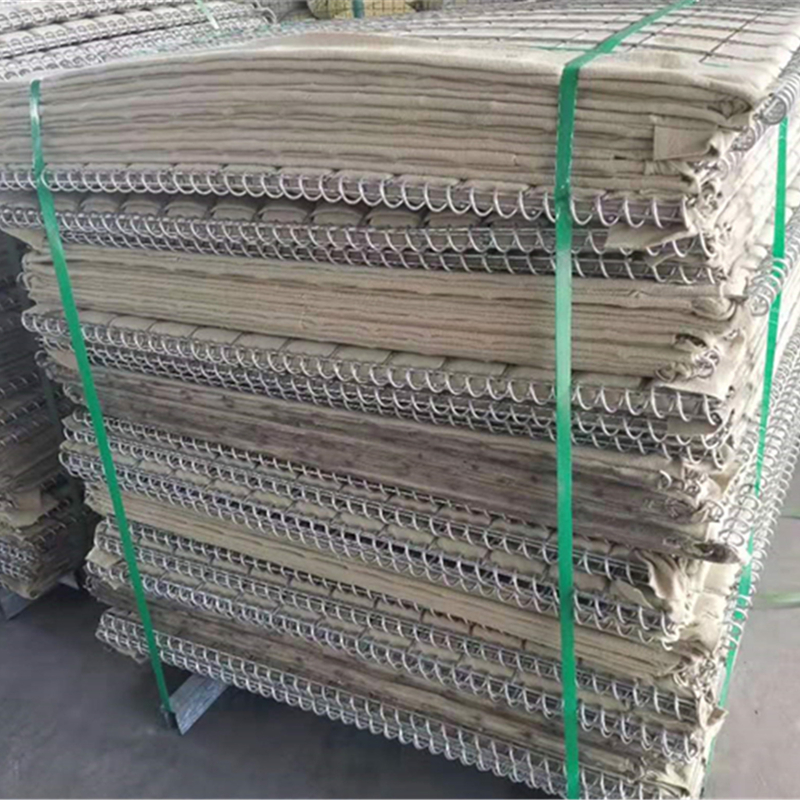

2. The spiral hinged corners allows flat packing for ease of
transportation
3. The welded mesh frame is of highly durable construction
4. The Galfan coated welded mesh frame is ideal for containing
large amounts of the geavy fill material that
gives the system its strength.
5. The non-woven geotextile liner allowing a wide range of fill
material
Brief description:

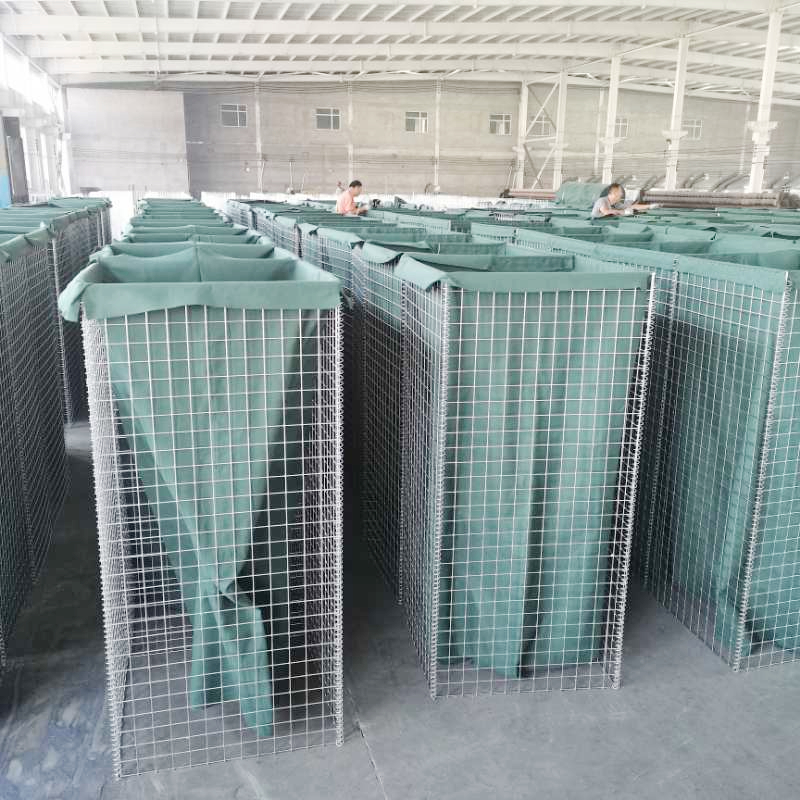

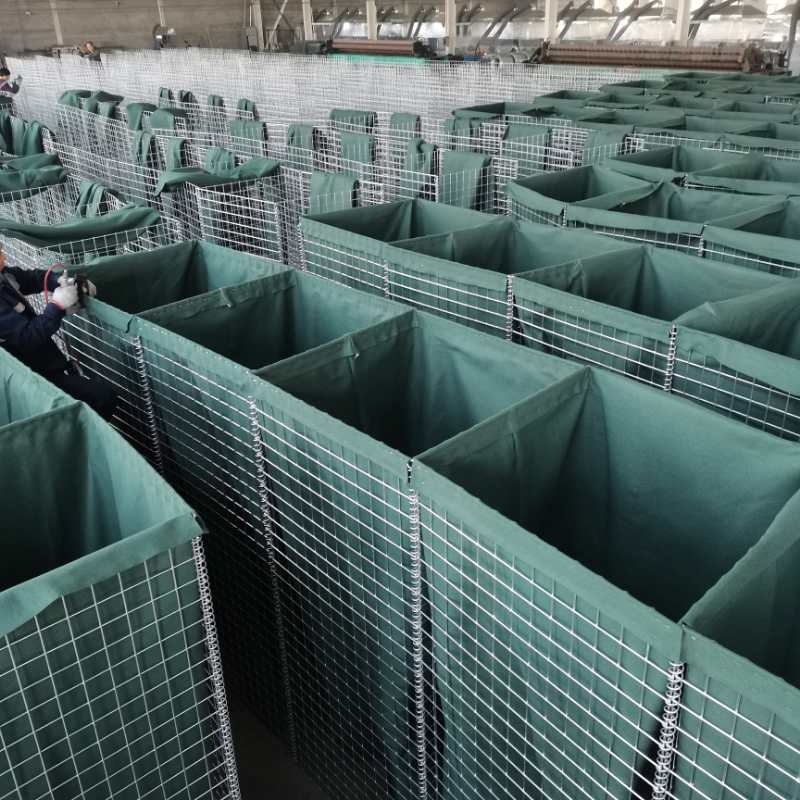

Mesh gabion is also known as gabion barrier, gabion concertainer.
It is made of steel welded mesh, spring coil, non-woven geotextile
with other fittings to make a simple and strong multi-cellular
system.
The finish of barrier is in pre galvanized,galfan coated,hot dipped galvanized to anti corrosion for long lifespan. The barrier is easy to move and install,
so it is widely used in military defensive blast wall, flood
control, erosion control, security fence barrier and garden
decoration.
Type | Length | Width | Height | No. of Cells / Unit | Wire dia. | Mesh Opening | Packing |
20' | 40' |
KAAPGN-1 | (10m) | 3'6"(1.06m) | 4'6"(1.37m) | 5+4 Cells | 5mm | 76.2x76.2mm | 56 Units | 112 Units |
|
|
KAAPGN-2 | 4'(1.22m) | 2'(0.61m) | 2'(0.61m) | 2 Cells | 5mm | 76.2x76.2mm | 720 Units | 1440 Units |
|
|
KAAPGN-3 | 32'9"(10m) | 3'3"(1m) | 3'3"(1m) | 5+5 Cells | 5mm | 76.2x76.2mm | 80 Units | 160 Units |
|
KAAPGN-4 | 32'9"(10m) | 5'(1.52m) | 3'3"(1m) | 5+5 Cells | 5mm | 76.2x76.2mm | 32 Units | |
|
KAAPGN-5 | 10'(3.05m) | 2'(0.61m) | 2'(0.61m) | 5 Cells | 5mm | 76.2x76.2mm | 300 Units | 600 Units |
|
KAAPGN-6 | 10'(3.05m) | 2'(0.61m) | 5'6"(1.68m) | 5 Cells | 5mm | 76.2x76.2mm | 108 Units | 216 Units |
|
KAAPGN-7 | 91'(27.74m) | 7'(2.13m) | 7'3"(2.21m) | 5+4+4 Cells | 5mm | 76.2x76.2mm | 6 Units | 15 Units |
|
|
KAAPGN-8 | 32'9"(10m) | 4'(1.22m) | 4'6"(1.37m) | 5+4 Cells | 5mm | 76.2x76.2mm | 32 Units | 72 Units |
|
KAAPGN-9 | 30'(9.14m) | 2'6"(0.76m) | 3'3"(1m) | 6+6 Cells | 5mm | 76.2x76.2mm | 70 Units | 140 Units |
|
KAAPGN-10 | 100'(30.5m) | 5'(1.52m) | 7'3"(2.21m) | 5+5+5+5 Cells | 5mm | 76.2x76.2mm | 6 Units | 14 Units |
|
|
KAAPGN-11 | 4'(1.22m) | 12'(0.3m) | 4'(1.22m) | 2 Cells | 5mm | 76.2x76.2mm | 480 Units | 960 Units |
|
KAAPGN-12 | 108'(33m) | 3'6"(1.06m) | 7'(2.13m) | 5+5+5+6+6+6 Cells | 5mm | 76.2x76.2mm | 6 Units | 15 Units |
