Expanded Metal Mesh
Expanded metal mesh is also called pulled plate wire mesh. A rigid piece of metal that
has been slit and drawn into an open mesh pattern in a single
operation. It is stronger, lighter in weight and more rigid than
the original base metal.
Expanded metal mesh material are carbon steel plate, stainless steel, galvanized
steel, aluminum, aluminum foil, lead, nickel plate, titanium,
aluminum-magnesium alloy panels. Conventional mesh is formed in a
diamond pattern. It has other pattern of hexagonal, round,
triangle, scale-like opening.
Material: expanded wire mesh usually made of stainless steel plate,copper
plate,galvanized plate,
aluminum plate,alloy plate,iron or other material,we can custom
according your request.
Hole shape: diamond,hexagon or other shape
Surface treatment: hot-galvanized,cold-galvanized,pvc coated,electro-galvanized,spray
anti-rust paint and so on
Features: the surface of expanded wire mesh is smooth and flat,the appearance
is beautiful,the surface
treatment made it anti-rust and anti-acid and anti-alkali .the
copper material made it's colour more beautiful.

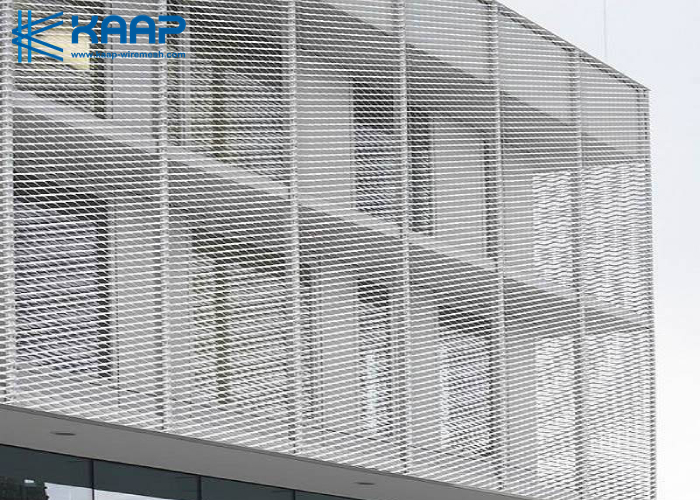

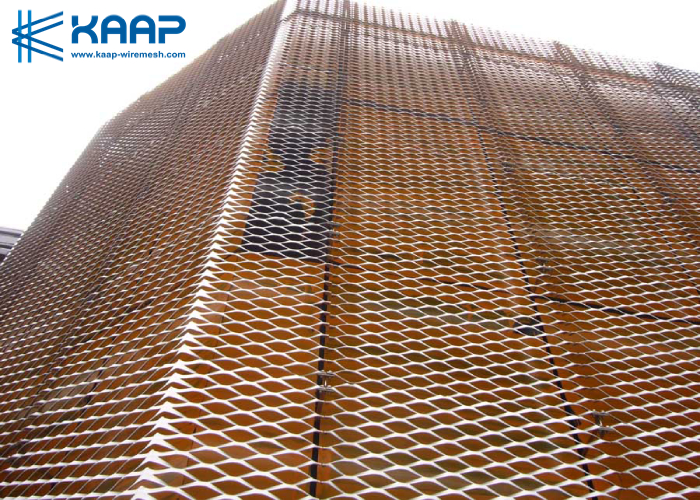

Application: the expanded wire mesh mainly used in decoration,machinery and
equipment protection,
handicraft manufacturing, high-end speaker grille. Highway
guardrail, sports venues fence, the road green
belt protection. It can also be used for foot tanker net, heavy
machinery and boilers, oil mines, locomotives,
ships, Such as working platforms, escalators, walkways and so on.
Specifications:
Sheet Thickness(mm) | Opening in Width
(mm) | Opening in Length
(mm) | Strand Width(mm) | Roll Width
(m) | Roll Length
(m) | Weight
(kg/m2) |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
