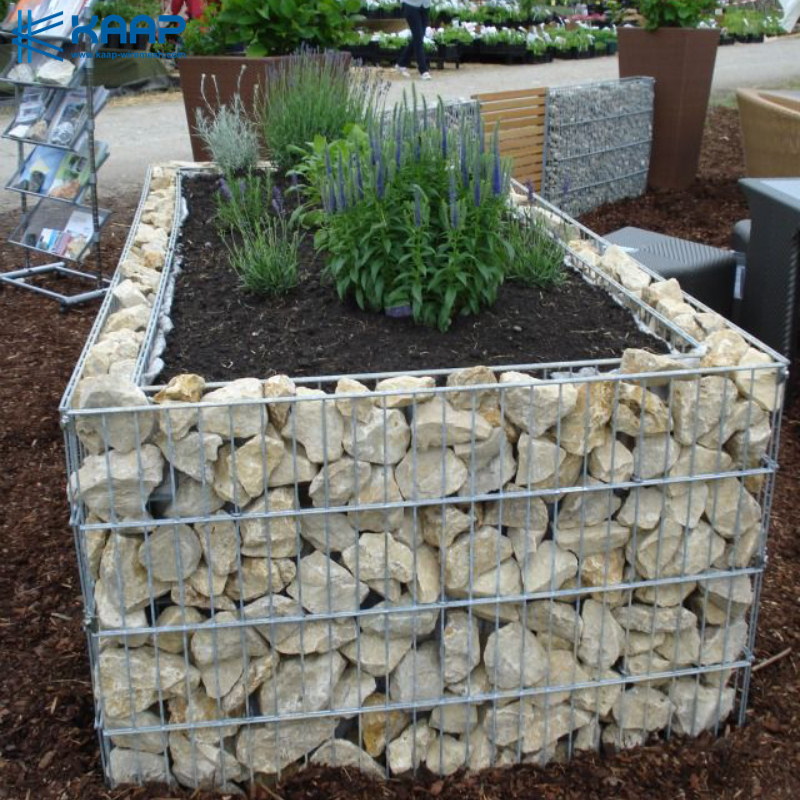

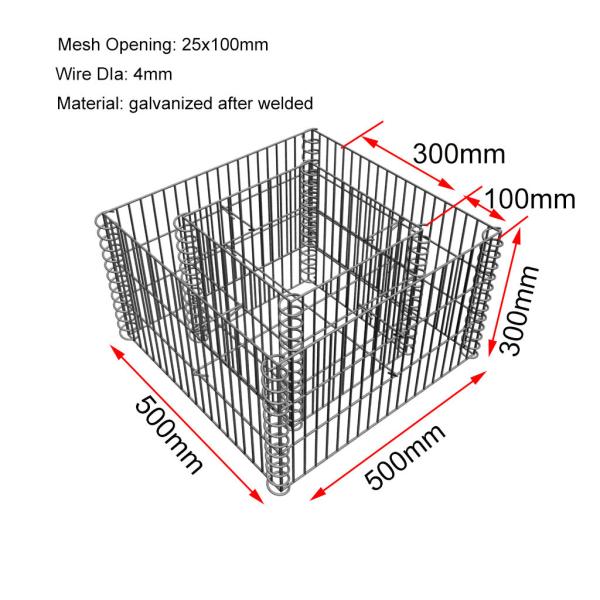

4 mm 25x100 mm hole galvanized flower bed garden welded gabion
decoration for sale
1. Finishing: heavy duty galvanized or galfan galvanized
2. Surface treatment: electro galvanized, hot-dipped galvanized,
pvc coated, stainless steel
3. Wire diameter: 2.7--5mm
4. Mesh size/opening: 37.5x75mm, 50x50mm, 75x75mm, 100x50mm,
100x100mm
5. Zinc coating: 40-290g/mm2
6. Application: Flood dam, dam and diversion, Prevent soil erosion,
bridge protection, retaining wall, road protection
7. Feature:easy to install, beautiful structure, low cost, it is
the best choice for garden decoration greening slope.

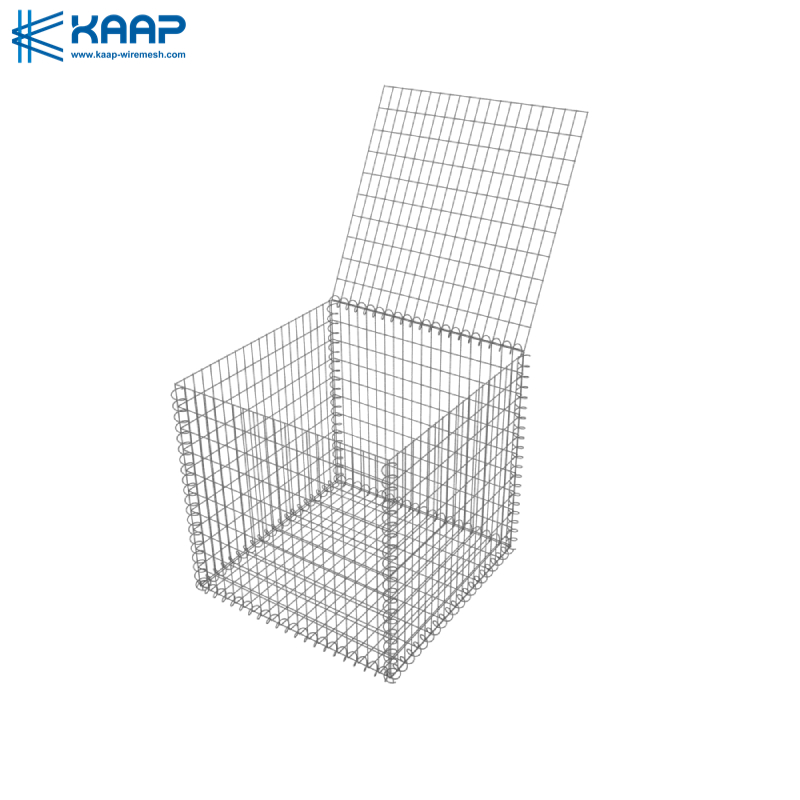

Welded Gabion Baskets Retaining Structures beats the competition
with faster erection time and baskets that last longer and keep
their shape. Our weld gabions are made from prefabricated Class III
zinc-coated 8, 9 or 11 gauge welded wire mesh fabric with a
50mmX50mm or 100mmX100mm spacing, and may be field cut to fit
curves, culverts, or angles.
*Features:
1. Strong anti-erosion ability 2.security and stability
3.Construction is simple, ecological stone cage cage process just
stone into the cage can be sealed, do not need special technology,
do not need water and electricity 4.Good landscape and protection
effect 5.Long service life, ecological stone cage net process life
for decades, and generally do not need maintenance
Application of 4 mm 25x100 mm hole galvanized flower bed garden welded gabion
decoration for sale
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil.
Protection engineering of seaside area.
4 mm 25x100 mm hole galvanized flower bed garden welded gabion
decoration for sale specifications as below:
Nominal Box sizes (m) | Mesh size (mm) | No. of diaphragms (no.) | Capacity per box (m3) |
| 1.0x1.0x0.5 | 50x50
75x75
50x100
100x100 | 0 | 0.50 |
| 1.0x1.0x1.0 | 0 | 1.00 |
| 1.5x1.0x0.5 | 0 | 0.75 |
| 1.5x1.0x1.0 | 0 | 1.50 |
| 2.0x1.0x0.5 | 1 | 1.00 |
| 2.0x1.0x1.0 | 1 | 2.00 |
| 3.0x1.0x0.5 | 2 | 1.50 |
| 3.0x1.0x1.0 | 2 | 3.00 |
| 4.0x1.0x0.5 | 3 | 2.00 |
| 4.0x1.0x1.0 | 3 | 4.00 |
