    Military 4mm Defensive Barrier Galvanized Welded Bastion Sand Wall

    Ask Lasest Price
    Brand Name : KAAPGN
    Model Number : KPZ-204
    Certification : ISO9001
    Price : USD12.6-46.9/set FOB Tianjin
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 sets per day
    Delivery Time : 7-10 days after confirmed order
    MOQ : 50 sets
    • Product Details
    • Company Profile

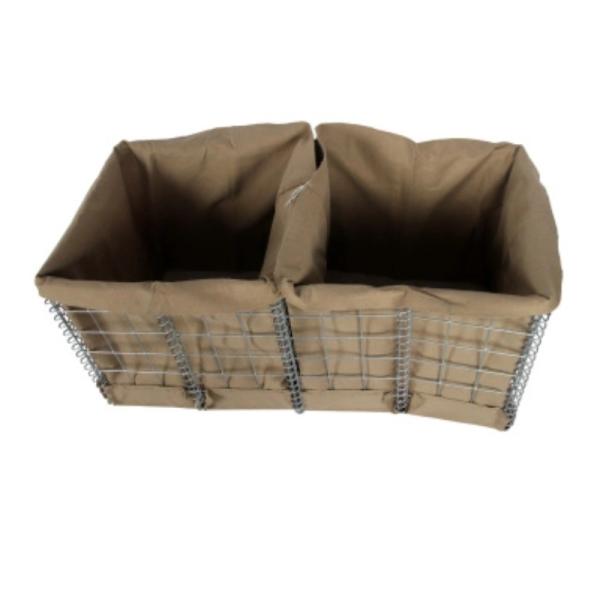

    Military 4mm Defensive Barrier Galvanized Welded Bastion Sand Wall

    Military Galvanized Welded Bastion Sand Wall Barrier Defensive​

    Wire diameter: 3.0mm, 4.0mm,5mm

    Mesh size: 50mmx50mm, 76.2mmx76.2mm,100mmx100mm

    Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement

    Geotextile: in heavy duty non-woven polypropylene

    Finish: hot dipped galvanized, galfan coated

    Packing: packed in pallet then wrapped with shrink film

    It is also called bastion, which is playing an import role in modern war and flood control. In practical use, Hesco Basket is filled with stone, sand or soil and forms to be a strong fence. Let’s simply introduce the size. Hesco Basket usually is made of high quality low carbon wire (Q195, Q235) or Calfan wire. 4mm and 5mm is the most common wire diameter. Mesh size includes 6.2x76.2mm, 50mm*50mm, 75mm*75mm and so on. It can be customized as per requirement. These wires are welded to meshes panels then linked with springs, packed with high-quality geotextiles, finally assembled and folded. It is highly mobile, easy to install and can be recycled.

    Product feature:

    1.Units can be both lined or unlined in other word it can be used together to any length, and can be stacked for

    additional height.

    2. The spiral hinged corners allows flat packing for ease of transportation

    3. The welded mesh frame is of highly durable construction

    4. The Galfan coated welded mesh frame is ideal for containing large amounts of the geavy fill material that

    gives the system its strength.

    5. The non-woven geotextile liner allowing a wide range of fill material

    Defensive Barriers
    PRODUCT HEIGHT WIDTH LENGTH
    MIL1 5442 R 54''(1.37M) 42''(1.06M) 32'9''(10M)
    MIL2 2424 R 24'' (0.61M) 24''(0.61M) 4'(1.22M)
    MIL3 3939 R 39''(1.00M) 39''(1.00M) 32'.9''(10M)
    MIL4 3960 R 39''(1.00M) 60''(1.52M) 32'.9''(10M)
    MIL5 2424 R 24''(0.61M) 24''(0.61M) 10'(3.05M)
    MIL6 6624 R 66''(1.68M) 24''(0.61M) 10'(3.05M)
    MIL7 8784 R 87''(2.21M) 84''(2.13M) 91'(27.74M)
    MIL8 5448 R 54''(1.37M) 48''(1.22M) 32'.9''(10M)
    MIL9 3930 R 39''(1.00M) 30''(0.76M) 30''(9.14M)
    MIL10 8760 R 87''(2.21M) 60''(1.52M) 100'(32.50M)
    MIL11 4812 R 48''(1.22M) 12''(0.30M) 4'(1.22M)
    MIL12 8442 R 84''(2.13M) 42''(1.06M) 108'(33M)

    Model
    Height(M)
    Width(M)
    Length(M)
    Number of cells
    ST-1(Mil 1)
    1.37
    1.06
    10
    5+4=9 cells
    ST-2(Mil 2)
    0.61

    0.61

    1.21

    2 cells

    ST-3(Mil 3)
    1.0

    1.0

    10
    5+5=10 cells
    ST-4(Mil 4)
    1.0
    1.5
    10
    5+5=10 cells
    ST-5(Mil 5)
    0.61
    0.61
    3.05
    5 cells
    ST-6(Mil 6)
    1.68
    0.61
    3.05
    5 cells
    ST-7(Mil 7)
    2.21
    2.13
    27.74
    5+4+4=13 cells
    ST-8(Mil 8)
    1.37
    1.22
    10
    4+5=9 cells
    ST-9(Mil 9)
    1.0
    0.76
    9.14
    6+6=12 cells
    ST-10(Mil 10)
    2.12
    1.52
    30.5
    5+5+5+5=20 cells

    Military 4mm Defensive Barrier Galvanized Welded Bastion Sand Wall
