SNS slope fence mesh SNS Wire Rope Mesh SNS Slope Stabilization
Mesh

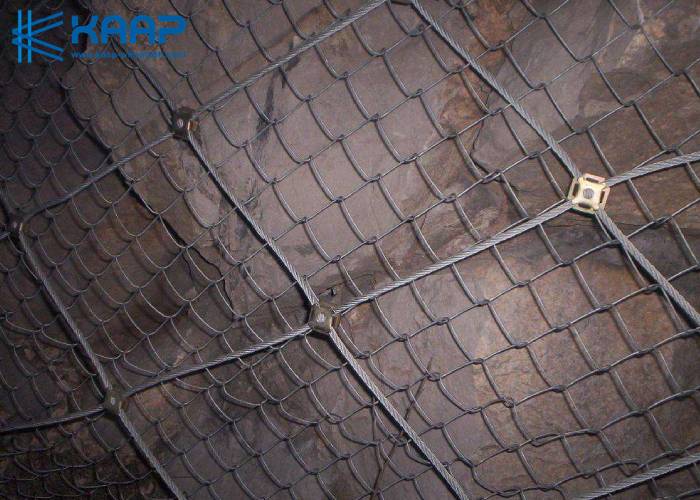

Active defense mesh: It fits for the air slake flake near the architecture facilities
and adopts cover fix type: Pre-strength make the hill to be a
strong integer and destroy the disaster in the bud situation. The
main product has followed several types: Z1 type (stone soil, take
the stone as the major and stone collapsed): Bolt, support rope,
steel mesh, the grid network
Positive type protection mesh: It fits for the hill mountains of the buffer areas near the
architecture facilities, in order to intercept the stone collapsed,
flying rocks, snow collapsed and Mud-rock flow and avoid the
destroy of disaster to the building. The main products have
followed types: P1 type: single coating ramp intercepth < 100m.
Gong word steel pole, pull anchor system, supporting rope, reducing
circle and steel wire.
Annular mesh is formed by single steel wire rope compare with the diamond steel
wire rope mesh, annular mesh break the two difficult choices on the
material application and structure. Under the situation of circle
diameter, we just only adjust the steel wire rod of single central;
we can achieve the conversion of protection degree while there is
no clear effect for the ability of changing shape. The appearance
of annular mesh, it brings a economical way for the improvement of
passive protection system, it makes the system structure much
better of replacing the original steel wire rope mesh
Flexible, local-global connection
High strength light section steel structure, easy to
transportation, open netting structure, favore the groundwater flow
Line products with different requirement
Widely used in some complicated physical characteristic area
Simple installation
Easy repair
| Opening(mm) | Wire diameter(metal wire)(mm) | Wire diameter(PVC coate)/inner/outside*(mm) | strands |
| 60*80 | Ø2.0-2.8 | Ø2.0/3.0-2.5/3.5 | 3 |
| 80*100 | Ø2.0-3.2 | Ø2.0/3.0-2.8/3.8 | 3 |
| 80*120 | Ø2.0-3.2 | Ø2.0/3.0-2.8/3.8 | 3 |
| 100*120 | Ø2.0-3.4 | Ø2.0/3.0-2.8/3.8 | 3 |
| 100*150 | Ø2.0-3.4 | Ø2.0/3.0-2.8/3.8 | 3 |
| 120*150 | Ø2.0-4.0 | Ø2.0/3.0-3.0/4.0 | 3 |
