Military Welded Mesh Gabion Hesco Barrier Welded Defensive Bastion
Speciation details of defense bastion:
Wire Thickness:
QS 1,2,3,4,,5,8,9.........8 Gauge(4mm)Galvanized steel wire
QS 7,10......................6 Gauge(5mm)Galvanized steel wire
Mesh Size:3" x 3"( 75mm x 75mm)
Sprial Wire: 8 Gauge(4mm)Hard steel wire, it also called as Coil
Hinges, Helical wire.
Joining Pins: 8 Gauge(4mm)galvanized hard steel wire, 10 Gauge(3mm)
galvanized hard steel wire.
Geotextile: 3mm heavy-duty non-woven polypropylene cloth.
Geotextile weight:300g/m2
Geotextile colour: Beige, Green
Geotextile surface treatment: Hot dipped galvanized, Al+Zn Alloy
Wire.(=Galfan Wire)

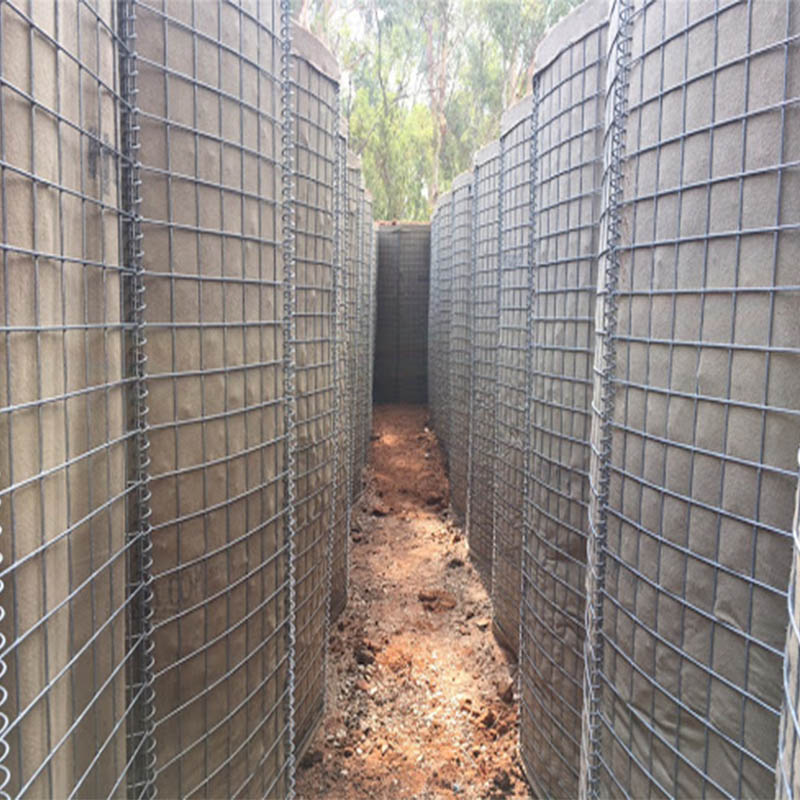

Hesco barrier also named as Hesco bastion, Hesco defense wall, sand
cage, welded gabion box, etc.It is a
prefabricated,multi-cellularsystem, made of zinc coated steel
welded mesh and lined with non-woven geotextile. Units can be
extended and joined using the providedjoining pins. It is easy
installed with using minimal manpower and commonly available
equipment. After extended,it is filled into sand,stone,then hesco
barrier like a defence wall or bunker,it is widely used for
military fortification and flood control.
Product Item standards | Height | Width | Length | Cells |
QG MIL1 | 54''(1.37m) | 42''(1.06m) | 32'9''(10m) | 1*4+1*5 cells |
QG MIL2 | 24''(0.61m) | 24''(0.61m) | 4'(1.22m) | 2 cells |
QG MIL3 | 39''(1.00m) | 39''(1.00m) | 32'9''(10m) | 2*5 cells |
QG MIL4 | 39''(1.00m) | 60''(1.52m) | 32'9''(10m) | 2*5 cells |
QG MIL5 | 24''(0.61m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
QG MIL6 | 66''(1.68m) | 24''(0.61m) | 10'(3.05m) | 5 cells |
QG MIL7 | 87''(2.21m) | 84''(2.13m) | 91'(27.74m) | 2*4+1*5 cells |
QG MIL8 | 54''(1.37m) | 48''(1.22m) | 32'9''(9.14m) | 1*4+1*5 cells |
QG MIL9 | 39'(1.00m) | 30''(0.76m) | 30'(9.14m) | 2*6 cells |
QG MIL10 | 87''(2.21m) | 60''(1.52m) | 100'(30.5m) | 4*5 cells |
QG MIL11 | 48''(1.22m) | 12''(0.3m) | 4'(1.22m) | 4 cells |
QG MIL12 | 84''(2.13m) | 42''(1.06m) | 108'(33m) | 6*5 cells |
QG MIL19 | 108''(2.74m) | 42''(1.06m) | 10'5''(3.18m) | 3 cells |
Application:
∗Perimeter Security and Defence Walls,
∗Equipment Revetments,
∗ garden landscaping decorative
∗Personnel and Material Bunkers, Observation Points, Defensive Firing Positions
∗Guard Posts, Explosives and Contraband Search Areas, Highway Checkpoints,
∗Border Crossing Checkpoints, Protecting Existing Structures, Flood control retaining wall
∗Coastal Erosion, Protection engineering of seaside area.
