Product Description

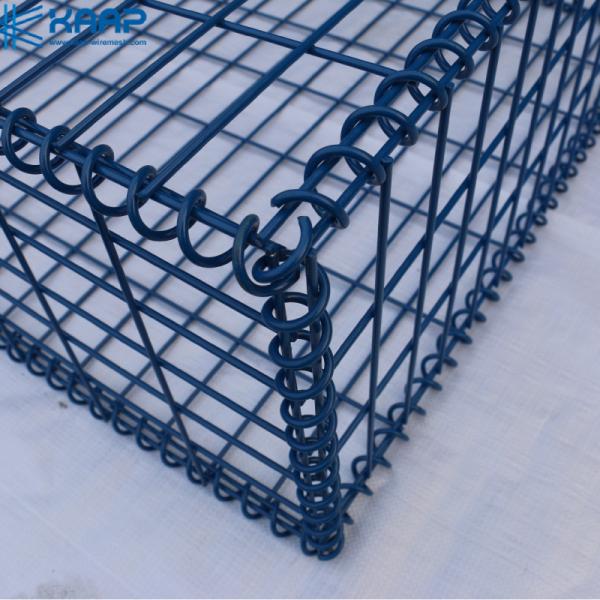

Welded Gabion Is Made Of High Quality Galvanized Steel Wire . The
Mesh Opening Is Rectangular Or Square, Filled With Block Stone Or
Natural Pebbles Inside It, Which Can Be Used For Highway, Slope
Protection, Roadway Protection, Bridge Protection Retaining Wall
And So On. It Has The Advantages Of Permeability, Integrity And So
On.
Advantges
* Welded Gabion Surface Is Smooth And Neat, Mesh Uniform, Solid
Solder Joint, With Strong Fastness, Corrosion
Resistance,Permeability And Integrity And Other Advantages.
*.Welded Gabion Is Cheap And Easy To Install, It Is An Ideal Choice
For Yarddecoration And Slope Protection Greening.
*.Welded Gabion Has Strong Ability To Resist Natural Damage And
Adverse Weather Effects.
*.Welded Gabion Has Great Tensile Capacity.
*. The Spot Installation Of Welded Gabion Is Simple, Quick And
Convenient, And The Structure Is Pretty Beautiful, And It Has High
Working Efficiency.
Application
Welded Gabion Can Not Only Hold Stone, Or Even More Fine Sediment,
Fill Materials From Local Materials, Especially Suitable For The
Lack Of Stone In The River Or Coastal Use. With The Help Of
Advanced Tools Such As Excavators And Forklifts, The Installation
Effect Is Tens Or Even Hundreds Of Times That Of Traditional
Sandbags. Welded Gabion And Geotextile Are Assembled And Sewn To
Contain Fine Sand, Earth And Stones; They Are Made Into
Anti-Explosion Walls. As Military Equipment, They Can Be Used As
Temporary Bunkers, Fortresses And Pre-War Headquarters For
Anti-Riot And Anti-Explosive Use By Combat Forces To Replace
Traditional Artificial Trenches, Effectively Block The Attack Of
Guns And Bullets, Effectively Reduce Casualties Among Soldiers And
Personnel, And Can Be Recycled. Our Company Produces As Many As 12
Specifications Of Explosion-Proof Cages, Earth Gray, Khaki, Grass
Green And Other Colors, And Can Be Flexibly Combined To Be Used In
Different Scenarios Or Uses.
Specification
| Corrosion Protection | Galvanized | 95% Zinc + 5% Alu | PVC Coated |
| Mesh Size | 50.8 x 50.8mm 76.2 x76.2mm | 50.8 x 50.8mm 76.2 x76.2mm | 50.8 x 50.8mm 76.2 x76.2mm |
| Unite Size | Wire Diameter | Wire Diameter | Wire Diameter |
| 1 x 1 x 1m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 2 x 1x 1m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 3x 1 x 1m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 4 x 1 x 1m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 1 x 1 x 0.5m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 2 x 1x 0.5m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 3x 1 x 0.5m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
| 4 x 1 x 0.5m | 3.0mm,4.0mm,5.0mm | 3.0mm,4.0mm,5.0mm | 3.0mm/3.8mm |
Producing line
Installation
Application pictures
FAQ
Q: Are you a manufacture or trading company?
A: We are factory, we have been in producing this product since
2006.
Q: Why choose us?
A: We have professional production line and team, Our goal is to
deliver excellence from start to finish of every project.
Q: Can you offer free sample?
A: Yes, as first cooperation usually the customer pay freight, and
we will return back this found if you make an order.
Q: Can we have your products with our own logo on package?
A: Yes, just send us your logo or printing design and the setup
cost would be quoted per artwork.
