Woven Heavy Hexagonal Chicken Wire Mesh Roll For Security Or
Constructiom

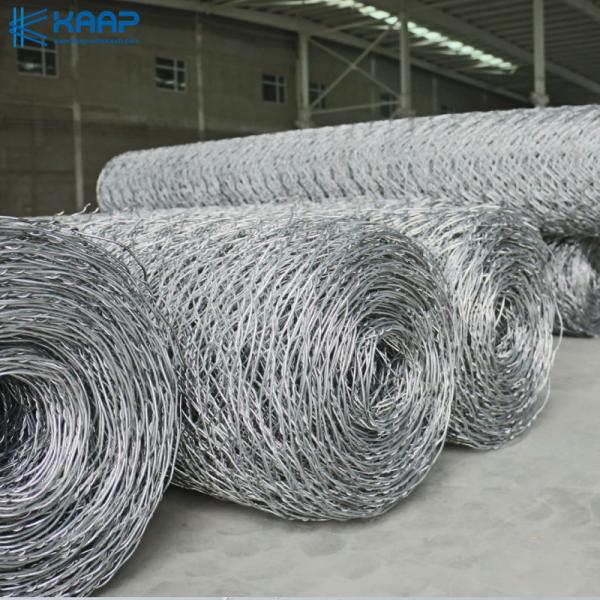

Hexagonal wire mesh is also known by the name of chicken mesh.
Hexagonal wire netting is manufactured in galvanized iron and
galvanized iron drawn wire. It is extensively used in building as
reinforcement of the roof and floor,light.fecing for poultry
farms,bids cages.tennis couts and fish garden,and children
playground.
Surface Treatment
1.Electro-galvanized before weaving
2.Electro-galvanized after weaving
3.Hot-dipped galvanized before weaving
4.Hot-dipped galvanized after weaving
5.PVC-coated hexagonal wire mesh
6.Galvanized redrawn iron hexagonal mesh
7.Stainless steel hexagonal wire mesh
Specification
| Galvanized steel hexagonal wire netting |
| mesh | Min. Gal.v.
G/SQ.M | Width | Wire Gauge (Diameter)
BWG |
| Inch | mm | Tolerance(mm) |
| 3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2%27 - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2%27 - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2%27 - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2%27 - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm - 55 | 1%27 - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1%27 - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1%27 - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm - 40 | 1%27 - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1%27 - 2M | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm - 30 | 2%27 - 2M | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm - 30 | 2%27 - 2M | 19, 18, 17, 16 |
Company profile
Our factory established in 2006 year, and we have 14 years'
experience in research and development, we mainly do welded gabion,
weaving gabion box, welded mesh panel, steel bar grating, razor
barbed wire, bird spike,chain link mesh, hexagonal wire mesh,
ground staple, T/Y post, vineyard post, and other metal products,
etc....and we enjoys high reputation at home and abroad, and we
have professional team, we have excellent workmanship and price
favorable to cooperate.
FAQ
Q: Are you a manufacture or trading company?
A: We are factory, we have been in producing this product since
2006.
Q: Why choose us?
A: We have professional production line and team, Our goal is to
deliver excellence from start to finish of every project.
Q: Can you offer free sample?
A: Yes, as first cooperation usually the customer pay freight, and
we will return back this found if you make an order.
Q: Can we have your products with our own logo on package?
A: Yes, just send us your logo or printing design and the setup
cost would be quoted per artwork.
