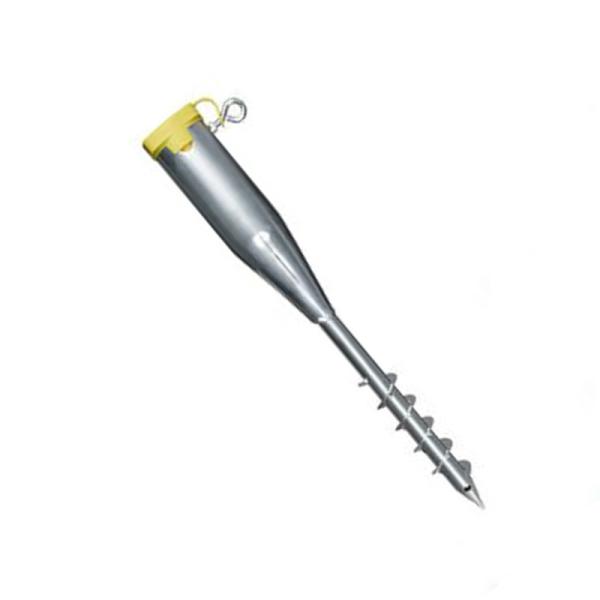

Ground Anchor
This ground screws is specially designed for solar panel ground
mounting and wooden house.
The solar ground anchors with flange is very suitable for wide
range of soft soid and ground circumstance : sand, earth, marsh,
desert, outdoor signs… Offer strong foundation supports .
By using Q235 standard carbon steel material and hot dipped
galvanized finished
This fixed flange solar ground screws is anti-rusty,anti-corrosion
for more than 10 years .
Specification
| Material |
Q235,Q195 etc.
|
| Diameter |
48mm,60mm,68mm,76mm,89mm,114mm
|
| Standard |
ISO
|
| Product name |
Ground anchor
|
| Length |
550-4000mm
|
| Pipe thickness |
2.5mm,3.0mm,3.5mm,3.75mm,4.0mm
|
| Surface treatment |
Hot dipped galvanized
|
| Top design |
Bolt, flange, U type plate
|
| Screw spacing |
40/60mm
|
| Sample |
Free sample
|
| Application |
Wooden house,solar powder system installation
|
| Place origin |
Hebei China
|
Differsent type
Applications
1. Timber Construction 2. Solar Power Systems
3. City and Parks 4. Fencing Systems
5. Road and Traffic 6. Sheds and Containers
7. Flag Poles and Marks 8. Garden and Leisure
9.Boards and Banners 10. Shaky board room
Installation
Packing
Company profile
Our factory established in 2006 year, and we have 14 years'
experience in research and development, we mainly do welded gabion,
weaving gabion box, welded mesh panel, steel bar grating, razor
barbed wire, bird spike,chain link mesh, hexagonal wire mesh,
ground staple, T/Y post, vineyard post, and other metal products,
etc....and we enjoys high reputation at home and abroad, and we
have professional team, we have excellent workmanship and price
favorable to cooperate.
Certificate
Recommanded product
FAQ
Q: Are you a manufacture or trading company?
A: We are factory, we have been in producing this product since
2006.
Q: Why choose us?
A: We have professional production line and team, Our goal is to
deliver excellence from start to finish of every project.
Q: Can you offer free sample?
A: Yes, as first cooperation usually the customer pay freight, and
we will return back this found if you make an order.
Q: Can we have your products with our own logo on package?
A: Yes, just send us your logo or printing design and the setup
cost would be quoted per artwork.
