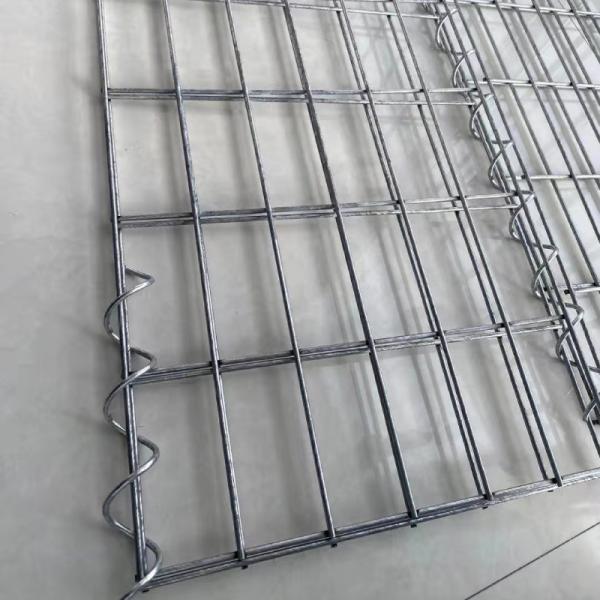

ISO quality galvanized welded wire gabion baskets made in China

Material: Low-Carbon Iron Wire,Galvanized Iron Wire

Wire Diameter: 3-6 mm,such as 3.5 mm,4 mm,5 mm,6 mm

Zinc Coated: 200-300 g/m³

Surface Treatment: hot dip galvanzed after welded

Stiffener length: 300 mm

Spiral Binder wire diameter: 3.7 mm etc.

Mesh Hole: 5 x 5 cm,5 x 10 cm,7.5 x 7.5 cm,10 x 10 cm,10 x 20 cm

Box Size : 2 x 1 x 1 m, 2 x 1 x 0.5 m, 1 x 1 x 1 m, 1 x 1 x 0.5 m, 1 x 0.5 x 0.5 m, 0.3 x 0.3 x 0.3 m, as your request.

How to install welded gabion box?

1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4. Gabion box filled with graded stone by hand or with a shovel.
5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6. When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones

ISO quality galvanized welded wire gabion baskets made in China specifications as below

Anping Kaipu Wire Mesh Products Co., Ltd. is a professional gabion mesh supplier
in China. We try specializing in manufacturing and exporting of woven gabion,welded gabion since
2006.
We have focused on welded gabion，woven gabion and gabion defensive barrier, and formed a comprehensive operation model ofintegrating design.production,sales,installation and after-sales service.

In addition,steel bar grating, welded fence and other garden supplies are also our business scope .
Hope to cooperate with customers around the world,mutual benefit ,create a better future
